Question 16 Selectable Answer

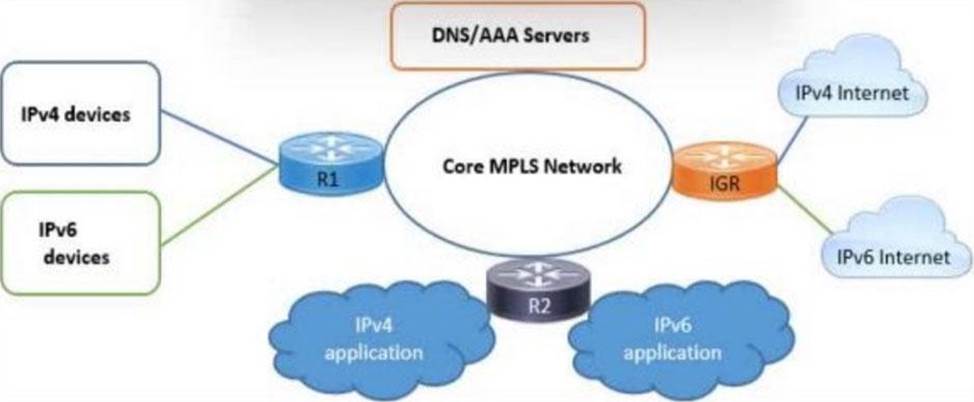

Refer to the exhibit.

An architect must design an IPv6 migration solution for an enterprise customer to support these requirements:
* Clients will transition to the new IPv6 network, which provides NAT64 and IPv6 DNS resolution services, using the same DNS name that points to the IPv4 address.
* The service provider will create a client-facing IPv6 interface with a new IPv6 virtual address that points to the same IPv4 DNS server.
* The service provider will support clients that use global IPv6 addresses and encapsulate IPv4 packets into IPv6 tunnels.
Which two migration solutions must the architect choose? (Choose two.)

A. Use dual-stack lite from the MPLS network to the IG
B. Use IPv6 tunneling from the devices to the core MPLS network.
C. Use dual-stack lite from the devices to the core MPLS network.
D. Use NAT44/64 from the MPLS network to the IG
E. Use NAT44/64 from the devices to the core MPLS network.

Answer:

Question 17 Written Answer

DRAG DROP
Drag and drop the characteristics from the left onto the configuration protocols they describe on the right.

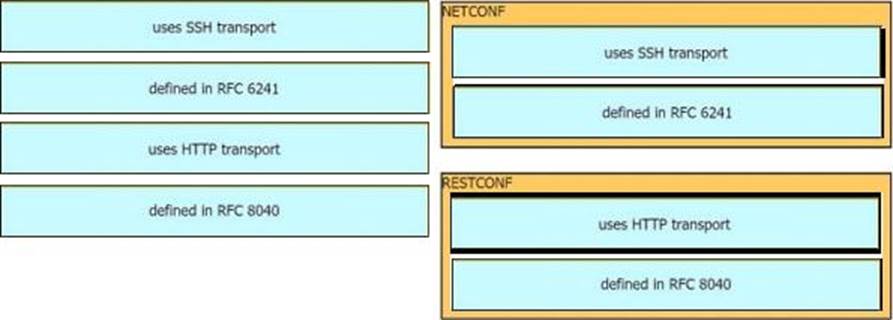

Answer:

Explanation:
https://www.ipspace.net/kb/CiscoAutomation/070-netconf.html#:~:text=NETCONF%20provides%20mechanisms%20to%20install,on%20top %20of%20HTTP%2FHTTPS.

Question 18 Selectable Answer

A network engineer must optimize a campus OSPF deployment Currently each time a type 1 or type 2 LSA is generated within an area, the OSPF process must recompute the entire SPT.
Which solution improves the recomputation process?

A. iSPF
B. BFD
C. SPF
D. PRC

Answer:

Question 19 Selectable Answer

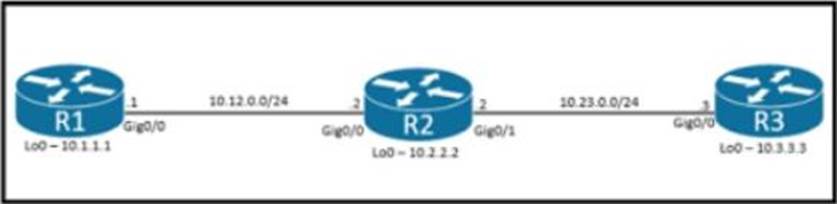

Refer to the exhibit

A customer requires maximum uptime for the data plane between R1 and R3 running OSPF.
Which solution must the design include for high availability if the routing process on R2 requires maintenance?

A. BFD on all routers
B. nonstop forwarding on R1 and R3
C. nonstop forwarding on R3 only
D. graceful restart on all routers

Answer:

Question 20 Selectable Answer

Refer to the exhibit. A network engineer is designing an OSPF solution to connect a company's remote to a newly provisioned MPLS VPN backbone. Some of the branches have a direct dark fiber connection between each other. The engineer wants to ensure that the dark fibers are used only when the MPLS core is unavailable.
Which solution must the engineer choose?

A. Stub area
B. Sham link
C. Virtual link
D. NSSA

Answer:
Explanation:
https://www.cisco.com/c/en/us/td/docs/ios-xml/ios/iproute_ospf/configuration/xe-16/iro-xe-16-book/iro-sham-link.html

Question 21 Selectable Answer

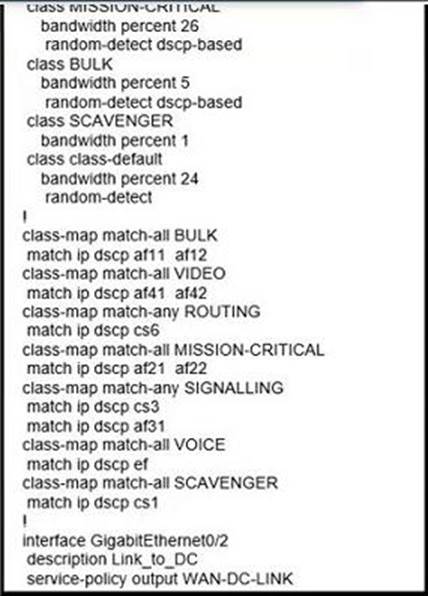

Refer to the exhibit.

A customer needs to apply QoS to the network management traffic passing through the GigabitEthernet0/2 interface. All eight queuing classes are in use, so the new requirement must be integrated into the existing policy.
Which solution must the customer choose?

A. Mark traffic to DSCP CS5 and assign it to the SIGNALLING class. Then, baseline existing queue sizes to determine if additional bandwidth can be provisioned to the SIGNALLING class.
B. Mark the traffic to DSCP CS4 and assign it to the SIGNALLING class. Then, prioritize traffic within the class.
C. Mark the traffic to DSCP CS6 and assign it to the ROUTING class Then, prioritize traffic within the class.
D. Mark the traffic to DSCP CS2 and assign it to the ROUTING class Then, baseline existing queue sizes to determine if additional bandwidth can be provisioned to the ROUTING class

Answer:

Question 22 Selectable Answer

In a Cisco SD-Access fabric, which node facilities connectivity between the fabric and networks external to the fabric?

A. intermediate
B. edge
C. control plane
D. border

Answer:

Question 23 Selectable Answer

Which component of Cisco SD-Access integrates with Cisco DNA Center to perform policy segmentation and enforcement through the use of security group access control lists and security group tags?

A. Cisco Application Policy Infrastructure Controller Enterprise Module
B. Cisco Network Data Platform
C. Cisco Identity Services Engine
D. Cisco TrustSec

Answer:

Question 24 Selectable Answer

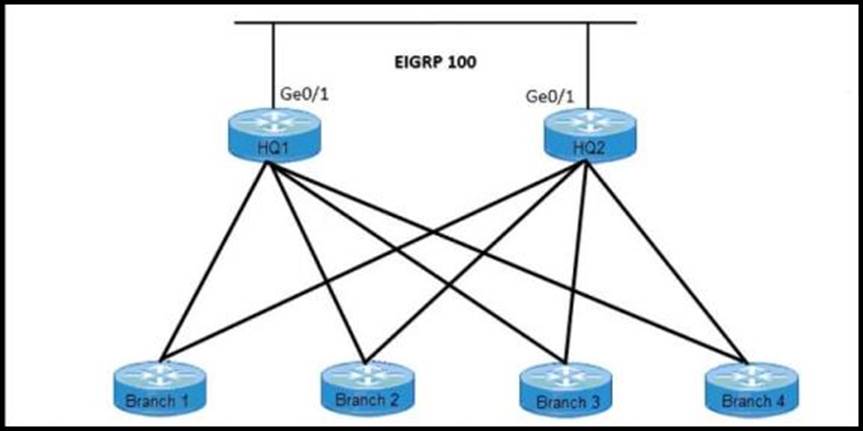

Refer to the exhibit.

An architect must create a stable and scalable EIGRP solution for a customer.
The design must:
• conserve bandwidth, memory, and CPU processing
• prevent suboptimal routing
• avoid any unnecessary queries
Which two solutions must the architect select? (Choose two.)

A. route summarization
B. prefix lists
C. distribute lists
D. stub routing
E. static redistribution

Answer:

Question 25 Selectable Answer

1.An engineer is designing a campus network with Cisco Catalyst 95CO switches in the aggression layer. The design requires running nonblocking Layer 2 MEC from the aggregation layer to the access layer. The Catalyst switches are located on different campus floors for availability reasons, and each access switch veil contam a single VLAN.
Which technology must the engineer choose for the aggregation switches in the design?

A. VPC
B. VSS
C. StackWise Virtual
D. StackWise-180

Answer:

Question 26 Selectable Answer

A company is running BGP on a single router, which has two connections to the same ISP.
Which BGP feature ensures traffic is load balanced across the two links to the ISP?

A. Multihop
B. Multipath Load Sharing
C. Next-Hop Address Tracking
D. AS-Path Prepending

Answer:

Question 27 Selectable Answer

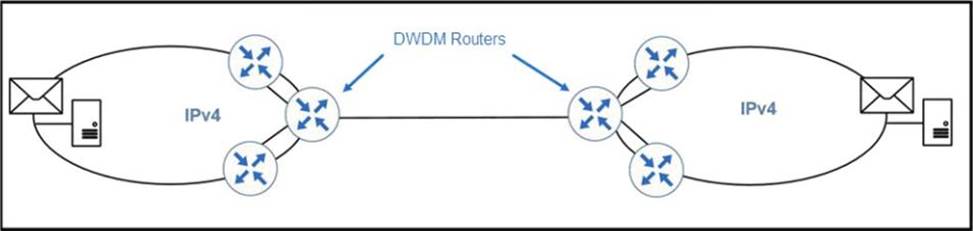

Refer to the exhibit.

An engineer is planning an IPv4 to IPv6 migration solution for a customer. The routers in the network can support IPv4 and IPv6, except for the DWDM routers. The DWDM routers provide a Layer 2 link in which the routers peer directly with each other across a DWDM circuit. The circuit also provides connectivity between the mail servers.
Which IPv6 migration technique must the engineer deploy?

A. dual-stack
B. 6to4
C. ISATAP
D. 6rd

Answer:

Question 28 Selectable Answer

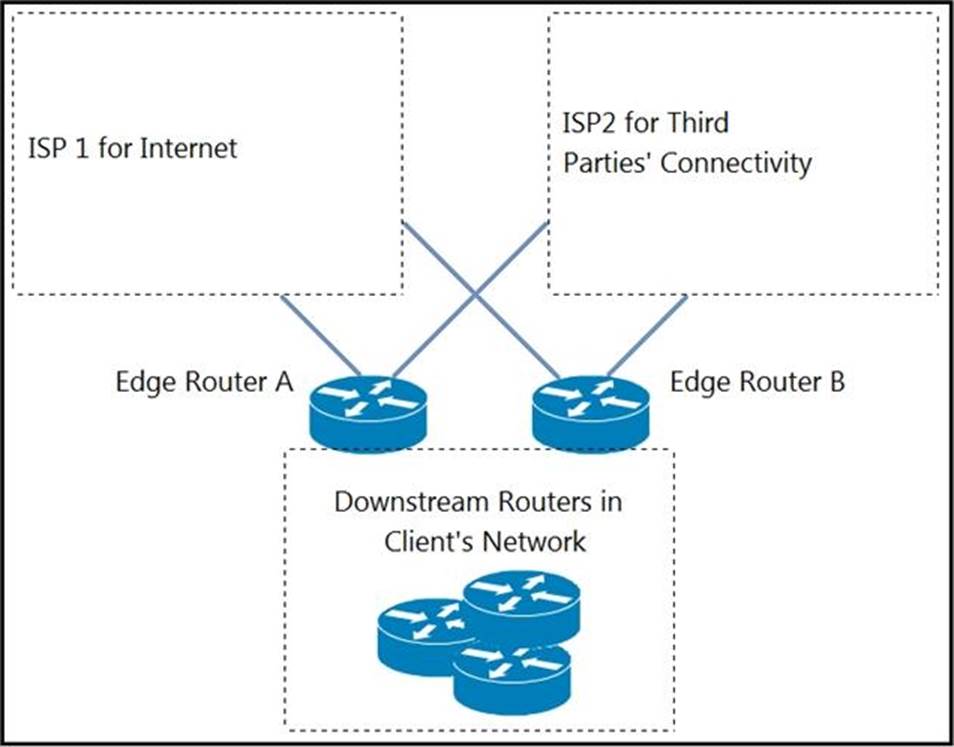

Refer to the exhibit.

An engineer is designing a BGP solution for a client that peers with ISP1 for full Internet connectivity and with ISP2 for direct exchange of routes for several third parties.
Which action, when implemented on the edge routers, enables the client network to reach the Internet through ISP1?

A. Run an eBGP session within different VRFs for each IS
B. Advertise a default route for downstream routers within the client network.
C. Apply the AS-path prepend feature for ISP2.
D. Apply route filtering such that the client advertises only routes originated from its own A

Answer:

Question 29 Selectable Answer

A branch office has a primary L3VPN MPLS connection back to the main office and an IPSEC VPN tunnel that serves as backup.
Which design ensures that data is sent over the backup connection only if the primary MPLS circuit is down?

A. Use EIGRP to establish a neighbor relationship with the main office via
B. L3VPN MPLS and the IPSEC VPN tunnel.
C. Use BGP with the multipath feature enabled to force traffic via the primary path when available.
D. Use static routes tied to an IP SLA to prefer the primary path while a floating static route points to the backup connection.
E. Use OSPF with a passive-interface command on the backup connection.

Answer:

Question 30 Selectable Answer

Which design consideration should be observed when EIGRP is configured on Data Center switches?

A. Perform manual summarization on all Layer 3 interfaces to minimize the size of the routing table.
B. Prevent unnecessary EIGRP neighborships from forming across switch virtual interfaces.
C. Lower EIGRP hello and hold timers to their minimum settings to ensure rapid route reconvergence.
D. Configure multiple EIGRP autonomous systems to segment Data Center services and applications.

Answer:
